1-8 colors 50 pcs/min Plastic Bottle Servo-Driven IR Printing Machine
Szczegóły Produktu:
| Miejsce pochodzenia: | Dongguan Chiny |
| Nazwa handlowa: | SENNY |
| Orzecznictwo: | CE SGS |
| Numer modelu: | SLS1888-IR5123 |
Zapłata:
| Minimalne zamówienie: | 1PC |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Pakiet sklejki |
| Czas dostawy: | 45 dni |
| Zasady płatności: | T/t |
| Możliwość Supply: | 10 szt./Miesiąc |
|
Szczegóły informacji |
|||
| Kolor: | 1-8 kolorów | Usługi po sprzedaży: | Wideo lub on-line |
|---|---|---|---|
| Gwarancja: | 1 rok | Klasa automatyczna: | W pełni automatyczne |
opis produktu

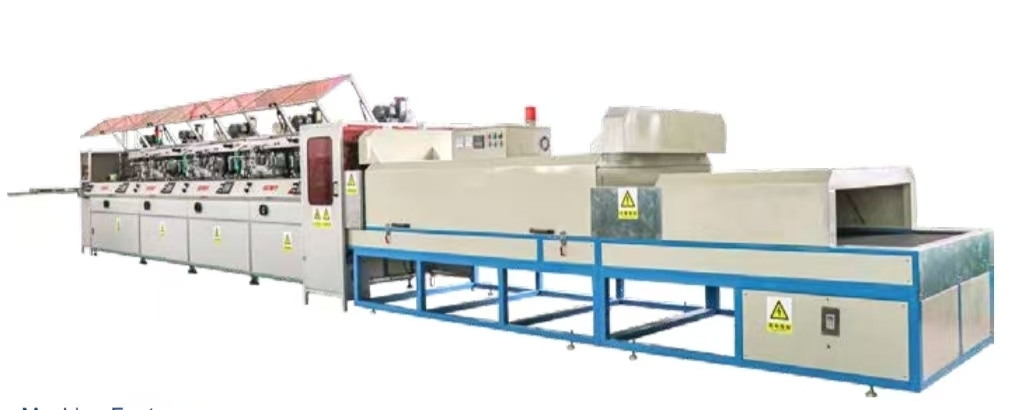

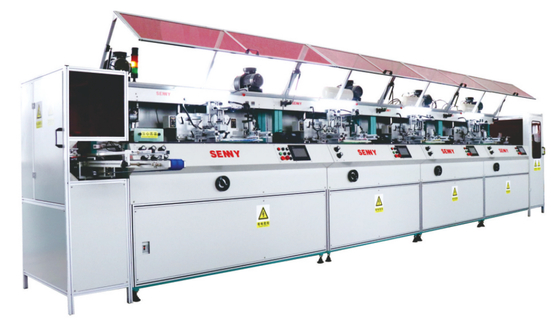

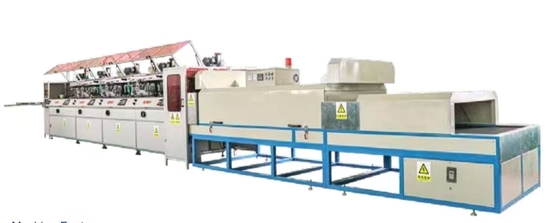

Machine Feature

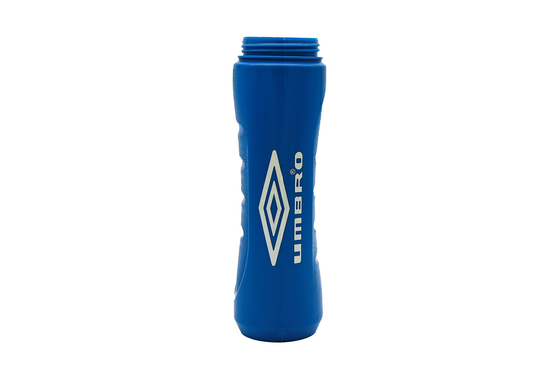

- This machine is specially designed for multi-color IR ink screen printing on plastic bottles of various shapes, including round, oval, square, and other custom profiles, ensuring versatile applicability across diverse packaging needs.
- Equipped with digital control technology and servo motor drive, the machine enables precise and efficient 360-degree full-circumference printing, eliminating limitations on printing angles and ensuring uniform ink coverage. It also integrates advanced Industry 4.0 capabilities, featuring remote management and real-time service functions for enhanced operational oversight and troubleshooting convenience.
- In terms of performance and usability, the machine adopts high-quality electrical components from renowned brands, paired with an intuitive touch screen and PLC control system. This combination guarantees stable operation, easy operation, and reduced maintenance costs.
- With a highly customizable modular structure, the machine can be linearly expanded to support 1 to 8-color printing configurations, adapting flexibly to varying production demands. Beyond standard screen printing and IR curing modules, optional add-ons such as independent hot stamping, labeling, and quality inspection modules are available, allowing users to build a fully integrated multi-functional printing line tailored to their specific workflows.
- Post-printing, products are automatically discharged by a manipulator and conveyed in an orderly manner into a constant-temperature drying tunnel furnace. This ensures thorough and consistent curing of the IR ink, enhancing adhesion and durability of the printed patterns for long-lasting quality.
Optional Configuration
- The machine is optionally equipped with an advanced plasma surface treatment function, which plays a crucial role in optimizing the printing effect and enhancing the adhesion of inks on plastic bottle surfaces.
Technical Parameters
| Machine Model | SLS1888-IR5123 |
| Printing Speed | Up to 50pcs/min |
| Diamter at 360 degree | 20-160mm |
| Bottle Hight | 50-300mm |
| Max.Printing Length | 300mm |
| Max.Printing Height | 200mm |
Printing your vision
About us:
Dongguan Senny Printing Equipment Co., Ltd. stands as a distinguished high-tech enterprise dedicated to the R&D, design, and manufacturing of fully automatic screen printers, pad printers, hot stamping machines, and their supporting auxiliary equipment. Backed by a professional production team with rich industry experience and strong technical prowess, the company has established itself as a leader in the domestic printing equipment sector.
