Advanced Automatic Labeling Machine For Cylindrical Items In Food Cosmetics Medicine Industry
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | Senny |
| Orzecznictwo: | CE SGS |
| Numer modelu: | SY200 |
Zapłata:
| Minimalne zamówienie: | 1PC |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Pakiet sklejki |
| Czas dostawy: | 1 miesiąc |
| Zasady płatności: | T/t, l/c |
| Możliwość Supply: | 10pcs/miesiąc |
|
Szczegóły informacji |
|||
| Kształt produktu: | Kwadratowy I Wielokątny | Typ maszyny: | Naklejki do etykietowania |
|---|---|---|---|
| Trwałość drukowania: | Wysoka trwałość | Stan: | Nowy |
| Gwarancja: | 1 rok | Usługa po sprzedaży: | Wideo lub on-line |
| Szczegóły pakietu: | Pakiet sklejki | Zasady płatności: | T/t |
| Orzecznictwo: | CE SGS | Możliwość Supply: | 10pcs/miesiąc |
| Podkreślić: | automatic labeling machine for cylindrical items,industrial labeling machine for food cosmetics,labeling machine with warranty for medicine |
||
opis produktu

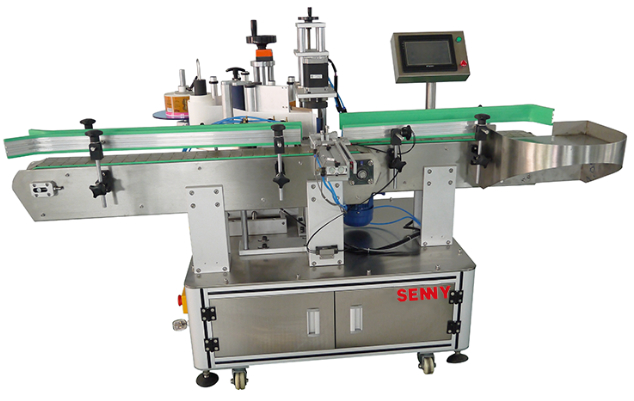

Advanced Automatic Labeling Machine For Cylindrical Items In Food Cosmetics Medicine Industry
Catalog 05- labeling machine-3_compressed.pdf
Application:
This equipment is highly suitable for labeling operations on cylindrical items across multiple industries, with typical application scenarios including:
Food industry: Labeling of metal food cans (e.g., canned fruits, preserved meats, powdered food containers) to ensure clear display of product names, ingredients, and shelf life;
Cosmetic industry: Labeling of cylindrical cosmetic bottles (e.g., lotion bottles, essence vials, hair care product containers) to highlight brand logos, product efficacy, and usage instructions;
Pharmaceutical industry: Labeling of cylindrical medicine bottles (e.g., oral liquid bottles, tablet jars, syrup bottles) to meet strict regulatory requirements for dosage, production date, and batch number marking.
Technical specifications (The following are the technical parameters of the standard model. (Other special requirements and functions can be customized):
| Model |
SY200 |
Sticker turning out speed |
5～25m/min |
| Sticker length |
20mm～285mm |
Labeling speed |
40～120pcs/min |
| Sticker width |
15mm～150mm |
Conveying speed |
5～25m/min |
| Product diameter |
φ25mm～φ100mm |
Weight |
185kg |
| Product heigth |
25mm～230mm |
Power voltage |
220V 50HZ |
| Sticker roll's external diameter |
φ280mm |
Power |
1.2KW |
| Sticker roll's inner diameter |
φ76mm |
Conveying orientation |
fm left to right |
| Labeling accuracy |
±1mm |
Machine dimensions |
1900*1300*1350mm |
Product Features:
1. User-friendly touch screen, easy and convenient operation, full-featured, rich online help functions and a number of early warning tips;
2. High-quality labeling effect, using elastic pressure-coated sponge belt, labeling smooth, no wrinkles, to achieve perfect labeling packaging quality;
3. Flexible application, can realize bottle vertical labeling, automatic bottle separation, single machine production or assembly line production;
4. Intelligent system control, automatic photoelectric tracking identification, not labeling, fault prompts and other functions;
5. High equipment stability. Adopt Panasonic PLC + maintenance control touch screen + Panasonic needle-shaped electric eye + Lloyd's / Italite labeling electric eye composed of advanced electronic control system, support equipment 7x24 hours of operation;
6. New mechanism application: the head base adopts 6-DOF adjusting mechanism and the height adjustment adopts three-lever adjusting mechanism, which is simple, convenient and efficient;
7. Optional functions: thermal coding/inkjet, automatic loading/unloading, automatic material collection, increase labeling device, other functions (customized according to customer requirements).
SY200 working process:
bottle loading --- bottle splitting --- labeling detection --- labeling and pressing labels --- product conveying --- bottle placing.
