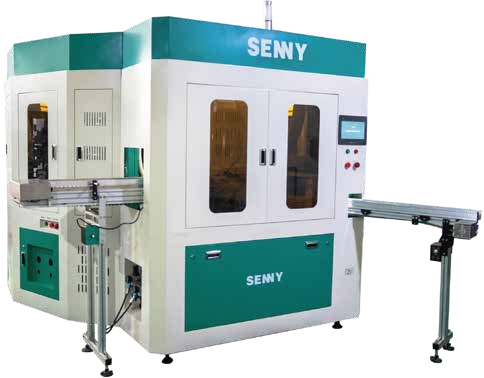

Hot Stamping Tubular UV Screen Printing Machine For Soft Tubes Up To 85pcs/Min
Szczegóły Produktu:
| Miejsce pochodzenia: | Dongguan Chiny |
| Nazwa handlowa: | Senny |
| Orzecznictwo: | CE,SGS |
| Numer modelu: | SRS566 |
Zapłata:
| Minimalne zamówienie: | 1PC |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Opakowanie filmu |
| Czas dostawy: | 45 dni |
| Zasady płatności: | T/t |
| Możliwość Supply: | 10pcs/miesiąc |
|
Szczegóły informacji |
|||
| Minimalne zamówienie: | 1PC | Cena: | negotiable |
|---|---|---|---|
| Szczegóły pakowania: | Pakiet sklejki | Czas dostawy: | jeden miesiąc |
| Warunki płatności: | T/t | Możliwość Supply: | 10pcs/miesiąc |
| Orzecznictwo: | CE SGS | Szczegóły pakietu: | Pakiet sklejki |
| Usługa po sprzedaży: | Wideo lub on-line | Kolor drukowania: | 1-4 kolory |
opis produktu
Hot Stamping Tubular UV Screen Printing Machine For Soft Tubes Up To 85pcs/Min
PRODUCT
Features
Driven by a high-precision servo motor and regulated via digitized precise control, the machine maintains stable operation—with minimal vibration and low noise during runtime—while delivering excellent printing accuracy. It can accurately reproduce fine printing details, fully meeting the requirements of precision-oriented production scenarios.
Equipped with both a fixed touchscreen and a mobile wireless tablet control system, the machine offers dual-operation flexibility: the fixed touchscreen facilitates real-time parameter adjustment during on-site operation, while the wireless tablet allows operators to control the device flexibly within a certain range. This setup also supports remote services, making it easier for later equipment maintenance, parameter debugging, and fault troubleshooting, thus reducing on-site operation and maintenance costs.
The machine adopts core electrical components from well-known industry brands—such as contactors, sensors, and drivers. These high-quality components not only ensure reliable overall performance but also effectively lower the probability of component failures, extend the machine’s service life, and provide solid support for continuous and stable production.
Technical parameters
| Mechine Model | SRS566 |
| Printimg Color | 1+4 |
| Printing speed | Up to 85pcs/min |
| Soft Tube Diameter | 13-76mm |
| Soft Tube Length | 30-240mm |
| Max Printing Length | 220mm |
| Max Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Configuration
- Unscrambling&feeding machine Hot stamping function plasma surface treatment function
- Visual registration function LED-UV curing function Finished product quality inspection function
flame treatment
UV curing
feeding device
Applications
SRS566 CNC Tubular UV Screen Printing Machine is a fully automatic CNC tubular UV screen printing machine. This machine is specifically designed for very small plastic containers of cosmetics and skin care productsThe application scope is very wide and it can be used for UV screen printing of various cylindrical tube bodies such as cosmetic tubes, pharmaceutical tubes, toothpaste tubes, plastic tubes, metal tubes, glass tubes, composite tubes, etc.
Prinitng sample
