1-12 Color 4000pcs/Hr Flat Screen Printing Machine 250x200mm Fully Automatic
Szczegóły Produktu:
| Miejsce pochodzenia: | Dongguan Chiny |
| Nazwa handlowa: | SENNY |
| Orzecznictwo: | CE SGS |
| Numer modelu: | SL1288 |
Zapłata:
| Minimalne zamówienie: | 1PC |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Pakiet sklejki |
| Czas dostawy: | jeden miesiąc |
| Zasady płatności: | TT lub LC |
| Możliwość Supply: | 10pcs/miesiąc |
|
Szczegóły informacji |
|||
| Klasa automatyczna: | W pełni automatyczne | Stacje: | 1-12 |
|---|---|---|---|
| Typ płyty: | Drukarka ekranowa z pieczętowaniem ciepłym | Usługa po sprzedaży: | Wideo lub on-line |
| Wydrukowane kolory: | 1 do 12 | Marka: | Senny lub OEM |
| Szczegóły pakietu: | Pakiet sklejki | Zasady płatności: | T/t |
| Orzecznictwo: | CE | Możliwość Supply: | 5pcs/miesiąc |
| Podkreślić: | fully automatic flat screen printing machine,4000pcs/hr screen printing machine,250x200mm flat screen printer |
||
opis produktu
1-12 Color 4000pcs/Hr Flat Screen Printing Machine 250x200mm Fully Automatic
This auto screen printing system SL1288 (supporting 1-12 color printing) is designed to adapt to diverse container shapes, including cylindrical, elliptical, and flat bottles/jars—such as flat cosmetic cream jars, elliptical beverage bottles, and square food cans. By contrast, the other machine SL1266 is exclusively for cylindrical containers, like mineral water bottles, cylindrical sauce jars, and daily care cylindrical bottles. You can choose freely based on your actual production needs (e.g., container shape, number of printing colors).
Both systems support flexible configuration of functional modules to enhance production efficiency and printing quality:
- Hot-stamping system: Enables printing of metallic or high-gloss patterns for a premium finish.
- Labeling system: Integrates screen printing and labeling into one process, saving manual steps.
- Plasma system: Improves ink adhesion on container surfaces, reducing the risk of ink peeling.
- UV-LED system: Accelerates ink curing speed, shortening the production cycle while ensuring color fastness.
Technical Specifications:
| Model | SL1288 |
| Max. printing diameter | Cylindrical/Elliptical/Flat |
| Elliptical container radius | R25 - R200mm |
| Width elliptical or flat container | 20 - 100mm |
| Cylindrical container diameter | Φ20 - Φ100mm |
| Container height | 50 - 280mm |
| Max. printing area | L250 x W200mm |
| Max. printing speed | Up to 5000pcs/hr |
SAFE EFFIENCY INNOVATIVE

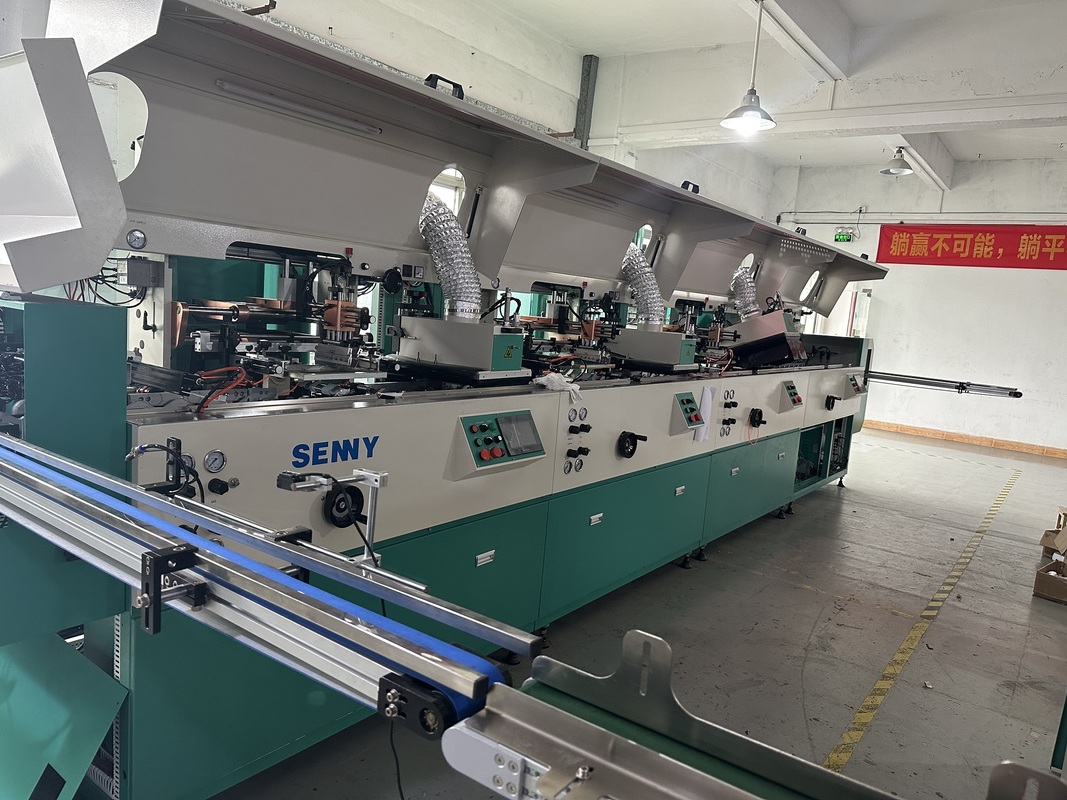

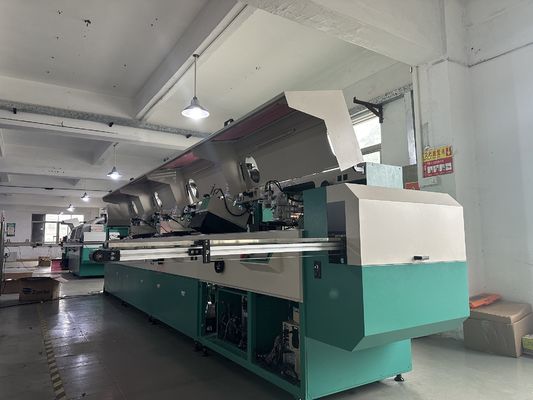

* SL1288 Aervo-driven automatic machine for silk-screen printing of containers in plastic or glass materials, having a circular, elliptical, square or rectangular section with centered or off-center neck,and it is easy for changing different shapes on printing section.
* Shape changeover: 30minutes for each machine,from cylindrical format to elliptical or flat format.
* Linear unit structure combination: option of adding up to a total of eight in-line colors .
* The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.
* In-feeding parts includes:in-feeding belt and machine hand for side-selection.
* The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.
* Flame treatment for round,elliptical and rectangle container
* Device for pre-positioning
* Second time positioning for printing.
* Electronic lift for squeegee.
* UV curing by rotating round container driven by stepper motor.
* Electronic UV system :device for adjusting light freely(LED UV curing system can be as a replacement)
* Elliptical and square container side-selection for auxiliary machine section
* Output parts:Machine hand for container standing up and belt
* Conform to CE standard.
This machine is designed not only for cylindrical, but also for elliptical and flat bottles,it is widely used in chemical and food package.

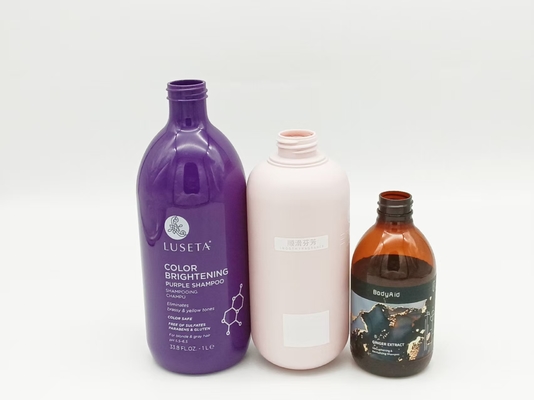

Printing samples
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
