4 Colors Fully Automatic Screen Printing Machine For Glass Tubes 45pcs/Min
Szczegóły Produktu:
Miejsce pochodzenia: | Dongguan Guangdong Chiny |
Nazwa handlowa: | SENNY |
Orzecznictwo: | CE SGS |
Numer modelu: | SRS1249-DR |
Zapłata:
Minimalne zamówienie: | 1PC |
---|---|
Cena: | negotiable |
Szczegóły pakowania: | Pakiet sklejki |
Czas dostawy: | jeden miesiąc |
Zasady płatności: | T/T i LC |
Możliwość Supply: | 10pcs /miesiąc |
Szczegóły informacji |
|||
Typ płyty: | Drukarka ekranowa | Stacja: | 4 Stacja |
---|---|---|---|
Kolor drukowania: | 4 kolory | Kształt produktu: | Okrągły kształt |
Ostrożnie: | Rok | Po służbie: | Pomoc techniczna online lub wideo |
Zasady płatności: | T/t | Szczegóły pakietu: | Pakiet sklejki |
Orzecznictwo: | CE | ||
Podkreślić: | fully automatic screen printing machine for glass tubes,high-speed screen printing machine 45pcs/min,multi-color screen printing machine 4 colors |
opis produktu

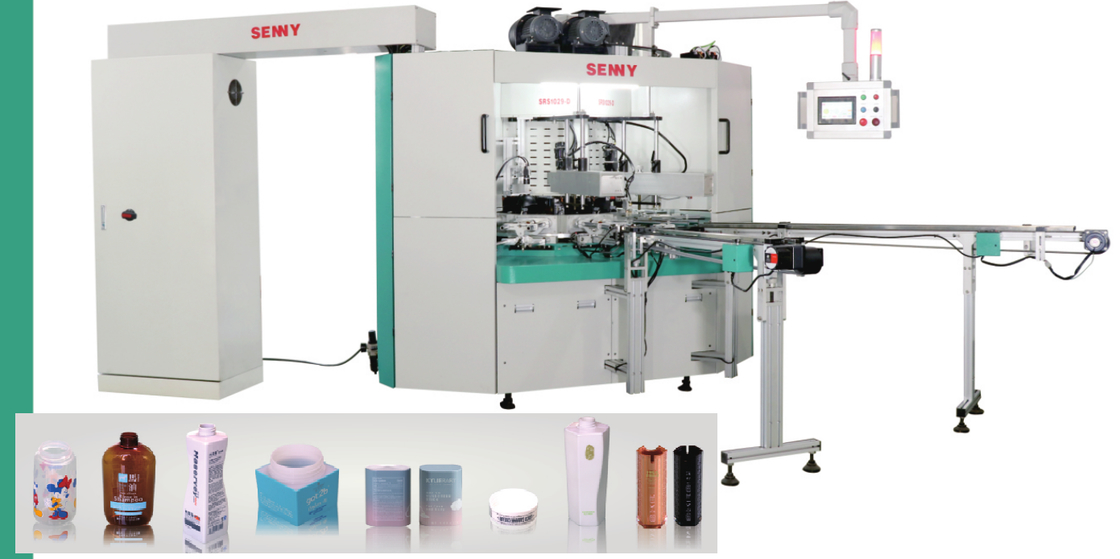

4 Colors Fully Automatic Screen Printing Machine For Glass Tubes 45pcs/Min
Technical Specifications
Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
Printing speed | Up to 45pcs/min |
Max. printing area | L250mm X W160mm |
Product height | 250mm |
Air presser | 6-7 bar |
Power | 380V 50/60HZ |
This machine is a multifunctional rotary multicolor screen printing machine. It is mainly used for printing patterns and text on irregular glass bottles, glass tubes, wine bottle caps, tubular products, lipsticks and flat-surfaced products. It features easy operation, accurate positioning, high automation and fast printing speed.
Features:
1.Fewer tooling requirements, easy operation, low maintenance costs, and high precision—with excellent colour-to-colour registration accuracy.
Adopts PLC control and touchscreen operation, equipped with multiple monitoring systems to ensure stable and safe machine operation even at high speeds.
2.Based on product characteristics, the machine can be configured with various functional modules, including:
Plasma treatment system
CCD positioning system
Hot-stamping system
UV-LED system
3.All key components are imported from Germany, the USA and Japan to guarantee machine quality and printing stability.
4.Supports three languages (Chinese, English and Spanish); additional languages can also be added to the PLC according to your native language.
Customized machine solutions are available for special-purpose products.

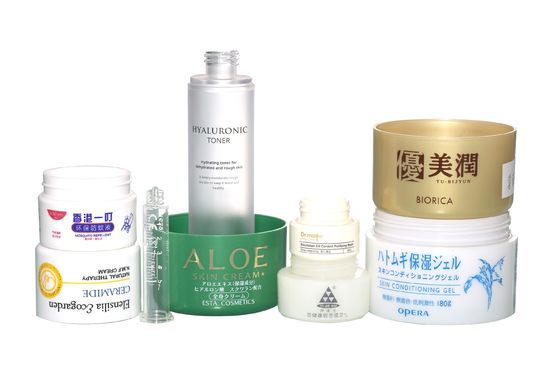

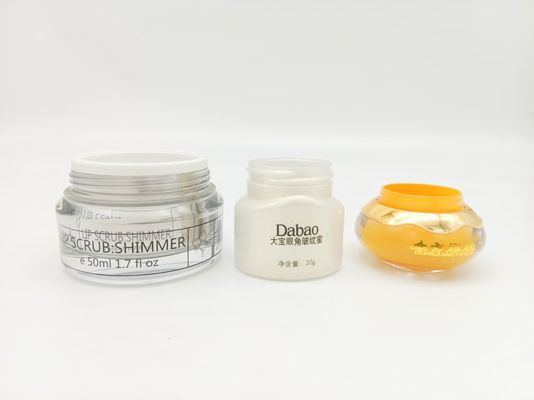

Printing samples
Optional Configuration
Exhibition:
Our factory
